STA - RITE WELL WATER PUMPS MODEL SN
SERIES PROJET SELF-PRIMING
SHALLOW WELL JET PUMP
The ProJet SN Series
Pumps provide excellent performance with good pressure for wells to 25'
deep. Self-priming after the priming chamber has been filled with water.
APPLICATIONS
Water systems and sprinkling for
homes, farms and cottages.
FEATURES
Quality Construction:
Close-grained cast iron body. Drain port provided for easy winterizing.
Built-in Jet : High strength
Lexan nozzle and venturi for maximum resistance to corrosion and abrasion.
Clean out plug provided for ease of service.
Noryl Impeller :
Precision-molded for perfect balance, ultra-smooth for highest
performance and efficiency.
Precision Molded
Diffuser : Pump primes faster, handles more air, with multi-port,
precision-molded, reinforced polypropylene diffuser.
Mechanical Shaft Seal :
Precision lapped and highly polished carbon-ceramic, stainless steel
construction. Internal design guarantees continuous water lubrication.
Motor Windings : Superior
insulation materials protect against excessive moisture and contaminants assure prolonged motor life.
Balanced Rotor : Die cast
under high pressures for uniform performance and greater efficiency,
dynamically balanced.
Heavy-duty Ball Bearings :
Shielded, permanently lubricated bearings, extensively tested to ensure
extended life and smooth, quiet operation.
Pump and Motor Shaft : Stainless
steel for maximum corrosion resistance; one-piece threaded shaft for
positive impeller drive and alignment.
Dustproof Cover : All
electrical components are protected from dirt, dust and insects by a
dustproof canopy; ventilating air cannot contaminate vital switching
components.
Pressure Switch : Professional
quality, allows cut-in adjustments.
SPECIFICATIONS
Max. Liquid Temperature: 140°F
Max. Inlet Pressure: 50 PSI
Shaft : One-piece threaded, 416
grade stainless steel
Base : Steel, 12 gauge
WARRANTY
1 year
warranty
For

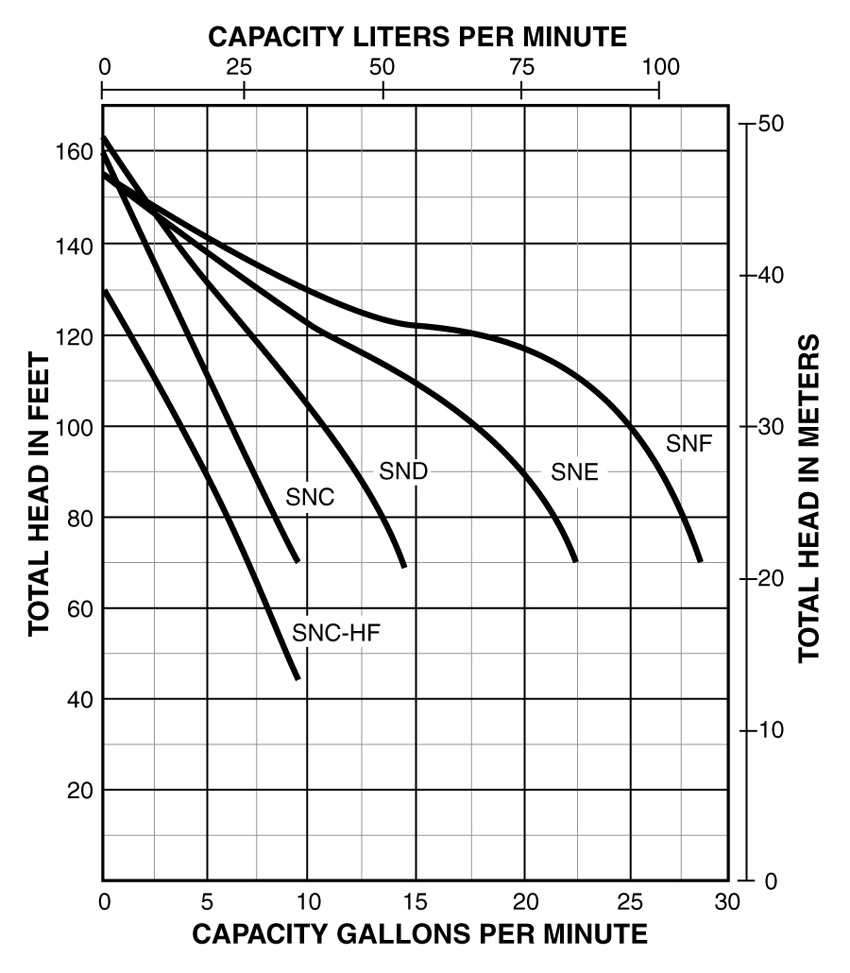

Additional Pump Performance Information - Click Here
Available Models
and Description
| Model
|
HP |
Switch
Setting |
Pipe
Tapping size |
Average Priming Time at
15 Feet:
|
Average
Priming Time at 25 Feet: |
Our
Price |
| Suct. |
Disch. |
| SNC |
1/2 |
30-50 |
1-
1/4" |
1" |
2.3 |
6.4 |
$
761.00 |
| SND |
3/4 |
30-50 |
1-
1/4" |
1" |
1.7 |
4.4 |
$
783.00 |
| SNE |
1 |
30-50 |
1-
1/4" |
1" |
1.3 |
4.4 |
$
846.00 |
| SNF |
1 1/2 |
30-50 |
1-
1/4" |
1" |
1.1 |
2.6 |
$
880.00 |
|
|
